β1-3 Galactosidase
Gray property icon for NEBU Gray property icon for cloned at NEB recombinant Gray property icon for incubation temperature 37° Gray property icon for heat inactivation 65° Gray property icon for rAlbumin

Product Introduction

β1-3 Galactosidase is a highly specific exoglycosidase that catalyzes the hydrolysis of β1-3 and, at a much lower rate, β1-6 linked galactose residues from oligosaccharides.

  • Recombinant enzyme with no detectable endoglycosidase or other exoglycosidase contaminating activities
  • Glycerol-free for optimal performance in HPLC and mass spectrometry analysis
  • ≥95% purity, as determined by SDS-PAGE and intact ESI-MS
  • Optimal activity and stability for up to 24 months
Bioz Badge Exists : True
Catalog # Size Concentration
P0726S 500 units 10000 units/ml

Product Information

Description

Substrate Specificity:

β1-3 Galactosidase is a highly specific exoglycosidase that catalyzes the hydrolysis of β1-3 and, at a much lower rate, β1-6 linked D-galactopyranosyl residues from oligosaccharides. The approximate kinetic data show > 100-fold preference for β1-3 over β1-6 linkages (1,2), and > 500-fold preference from β1-3 over β1-4 linkages (3).

Detailed Specificity: The GlcNAc(β1-6) residue is the only anomeric configuration that can effect the specificity of the enzyme enabling cleavage of the non-reducing β1-4Galactose (Fig. 1).

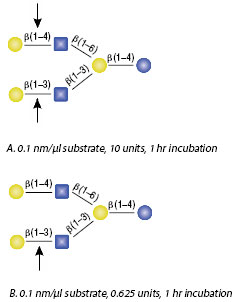

 Figure 1:
Figure 1


Selling concentration of the enzyme will cut the β1-4Galactose linkage as shown in (A) due to the adjacent GlcNAcβ1-6 anomer. This cleavage will not occur if the selling concentration of the enzyme is diluted 16-fold, as shown in (B).

Product Source

Cloned from Xanthomonas manihotis and expressed in E. coli.
This product is related to the following categories:
Exoglycosidases
This product can be used in the following applications:
Glycan Sequencing,
Recombinant Glycoprotein Expression,
Glycoprotein Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    P0726S -20
    Component Name Component # Stored at (°C) Amount Concentration
    β1-3 Galactosidase P0726SVIAL -20 1 x 0.05 ml 10,000 units/ml
    GlycoBuffer 1 B1727SVIAL -20 1 x 1 ml 10 X
    Recombinant Albumin (Low-glycerol) B9203SVIAL -20 1 x 0.25 ml 10 mg/ml

Properties & Usage

Unit Definition

One unit is defined as the amount of enzyme required to cleave > 95% of the terminal β-D-galactose from 1 nmol of Galβ1-3GlcNAcβ1-3Galβ1-4Glc-7-amino-4-methyl-coumarin (AMC), in 1 hour at 37°C in a total reaction volume of 10 µl.

Reaction Conditions

1X GlycoBuffer 1
Supplement with 100 µg/ml Recombinant Albumin (Low-glycerol)
Incubate at 37°C

1X GlycoBuffer 1
5 mM CaCl2
50 mM sodium acetate
(pH 5.5 @ 25°C)

Storage Buffer

50 mM NaCl
20 mM Tris-HCl
1 mM EDTA
pH 7.5 @ 25°C

Heat Inactivation

65°C for 10 minutes

Molecular Weight

Theoretical: 66 kDa

Unit Assay Conditions

Two fold dilutions of β1-3 Galactosidase are incubated with 1 nmol AMC-labeled substrate in 1X GlycoBuffer 1, supplemented with 100 µg/ml rHSA, in a 10 µl reaction. The reaction mix is incubated for 1 hour at 37°C. Separation of reaction products are visualized via thin layer chromatography (1).

Product Notes

  1. Optimal incubation times and enzyme concentrations must be determined empirically for a particular substrate.

References

  1. Wong-Madden, S.T. and Landry, D. (1995). Glycobiology. 5, 19-28.
  2. Guthrie, E.P. and Taron, C.H. New England Biolabs. Unpublished observation
  3. Monks, B. New England Biolabs. Unpublished observation

FAQs & Troubleshooting

FAQs

  1. How much exoglycosidase should be used?
  2. Do detergents inhibit exoglycosidases/endoglycosidases?
  3. Why have the NEB Glycosidase enzymes changed reaction buffers? What are the new reaction buffers and can I still use an enzyme with its old buffer? Where can I find the composition of the old buffers?
  4. What are Glycosidases and their uses?

Tech Tips

Using 1-2 µl is a good starting point for a 1 hr incubation of 1µg of glycoprotein or 100 nM of oligosaccharide.
