Product Class: Other

PNGase F
Gray property icon for NEBU Gray property icon for cloned at NEB Gray property icon for incubation temperature 37° 75 Heat

Product Introduction

PNGase F is the most effective enzymatic method for removing almost all N-linked oligosaccharides from glycoproteins. PNGase F is an amidase, which cleaves between the innermost GlcNAc and asparagine residues of high mannose, hybrid, and complex oligosaccharides.

  • Leaves N-glycan core oligosaccharides intact and suitable for further analysis
  • Non-recombinant with no detectable endoglycosidase F1, F2 or F3 contamination
  • ≥ 95% purity, as determined by SDS-PAGE and intact ESI-MS
  • Stored in 50% glycerol
  • Optimal activity and stability for up to 24 months
  • Can be used under native or denaturing conditions
Bioz Badge Exists : True
Catalog # Size Concentration
P0704S 15000 units 500000 units/ml
P0704L 75000 units 500000 units/ml

Featured Videos

View Video Library

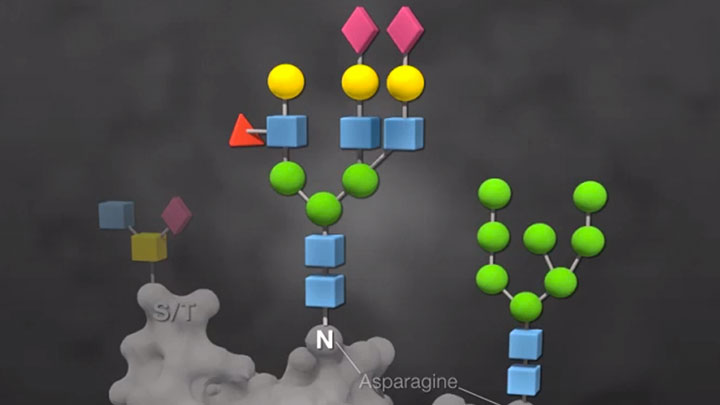

  • Glycobiology_Animation_thumb

    Overview of Glycobiology

Product Information

Description

Peptide -N-Glycosidase F, also known as PNGase F, is an amidase that cleaves between the innermost GlcNAc and asparagine residues of high mannose, hybrid, and complex oligosaccharides from N-linked glycoproteins (1)


Figure 1: Detailed specificity of PNGase F Diagram of detailed specificity of PNGase F
PNGase F is not able to cleave N-linked glycans from glycoproteins when the innermost GlcNAc residue is linked to an α1-3 Fucose residue. This modification is most commonly found in plant and some insect glycoproteins.

Product Source

PNGase F is purified from Flavobacterium meningosepticum (3) and it is free of proteases and Endo F activities.

Glycosidase Recognition Site

This product is related to the following categories:
Endoglycosidases,
Proteome Analysis,
This product can be used in the following applications:
Expression Systems,
Glycan Sequencing,
Proteomics,
Recombinant Glycoprotein Expression,
Glycoprotein Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    P0704S -20
    Component Name Component # Stored at (°C) Amount Concentration
    PNGase F P0704SVIAL -20 1 x 0.03 ml 500,000 units/ml
    GlycoBuffer 2 B3704SVIAL -20 1 x 1 ml 10 X
    Glycoprotein Denaturing Buffer B1704SVIAL -20 1 x 1 ml 10 X
    NP-40 B2704SVIAL -20 1 x 1 ml 10 %
  • NEB # Stored at (°C)
    P0704L -20
    Component Name Component # Stored at (°C) Amount Concentration
    PNGase F P0704LVIAL -20 1 x 0.15 ml 500,000 units/ml
    GlycoBuffer 2 B3704SVIAL -20 1 x 1 ml 10 X
    Glycoprotein Denaturing Buffer B1704SVIAL -20 1 x 1 ml 10 X
    NP-40 B2704SVIAL -20 1 x 1 ml 10 %

Properties & Usage

Unit Definition

One unit is defined as the amount of enzyme required to remove > 95% of the carbohydrate from 10 µg of denatured RNase B in 1 hour at 37°C in a total reaction volume of 10 µl.

Unit Definition Assay:
10 µg of RNase B are denatured with 1X Glycoprotein Denaturing Buffer (0.5% SDS, 40 mM DTT) at 100°C for 10 minutes. After the addition of NP-40 and GlycoBuffer 2, two-fold dilutions of PNGase F are added and the reaction mix is incubated for 1 hour at 37°C. Separation of reaction products are visualized by SDS-PAGE.

1X Glycoprotein Denaturing Buffer
0.5% SDS
40 mM DTT

1X NP-40
1% NP-40 in MilliQ-H2O

Reaction Conditions

1X GlycoBuffer 2
Incubate at 37°C

1X GlycoBuffer 2
50 mM Sodium Phosphate
(pH 7.5 @ 25°C)

Storage Buffer

20 mM Tris-HCl
50 mM NaCl
5 mM EDTA
50% Glycerol
pH 7.5 @ 25°C

Heat Inactivation

75°C for 10 minutes

Molecular Weight

Apparent: 36000 daltons

Application Features

  • Removal of high mannose N-glycans from glycoproteins

Product Notes

  1. Since PNGase F activity is inhibited by SDS, it is essential to have NP-40 present in the reaction mixture. Why this non-ionic detergent counteracts the SDS inhibition is unknown at present.
  2. To deglycosylate a native glycoprotein, longer incubation time as well as more enzyme may be required.
  3. PNGase F will not cleave N-linked glycans containing core α1-3 Fucose.
  4. Typical reaction conditions: Please see Protocols

References

  1. Maley, F. et al. (1989). Anal. Biochem. 180, 195-204.
  2. Tretter, V. et al. (1991). Eur. J. Biochem.. 199, 647-652.
  3. Plummer, T.H. Jr. and Tarentino, A.L. (1991). Glycobiology. 1, 257-263.

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Is PNGase F compatible with downstream analysis such as HPLC and Mass Spectrometry?
  2. What happens to the asparagine after PNGase removes the sugar?
  3. Why is my immunoprecipitated (IP) protein degraded? When I denature and add SDS all I see on my SDS-PAGE is a smear or no protein?
  4. What are the typical reaction conditions for PNGase F?
  5. Does PNGase F work in Urea?
  6. How do I inhibit PNGase F?
  7. How much PNGase F should I use to remove my carbohydrate under native conditions?
  8. I tried the PNGase F on my glycoprotein and didn't see removal of the carbohydrate. What could be the problem?
  9. What is the difference between PNGase F, Endo H and O-Glycosidase?
  10. Do detergents inhibit exoglycosidases/endoglycosidases?
  11. Why have the NEB Glycosidase enzymes changed reaction buffers? What are the new reaction buffers and can I still use an enzyme with its old buffer? Where can I find the composition of the old buffers?
  12. What are Glycosidases and their uses?
  13. What is a good endoglycosidase substrate?

Tech Tips

PNGase F
You can use this enzyme under native or denaturing conditions
Under native conditions we recommend adding more enzyme and using longer incubation times
PNGase F activity is inhibited by SDS, therefore under denaturing conditions it is essential to have NP-40 present in the reaction mixture in a 1:1 ratio.
PNGase F will not cleave N-linked glycans containing core a1-3 Fucose (PNGase A must be used in this instance)
Enzyme activity varies at different temperatures: 37°C - 100%; 30°C - 100%; 23°C - 65%; 17°C - 40% and 3°C - 0%
A good positive control substrate is RNase B
