Product Class: Other

Endo H
Gray property icon for NEBU Gray property icon for cloned at NEB recombinant Gray property icon for incubation temperature 37° 75 Heat

New Reaction Buffer

Product Introduction

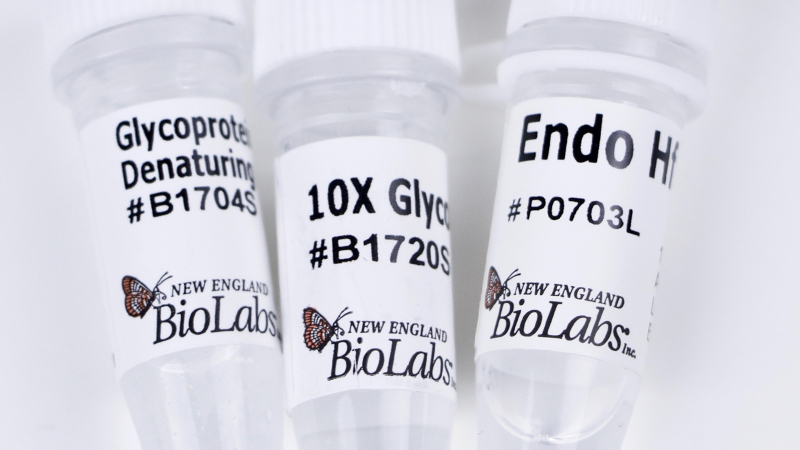

Endoglycosidase H is a recombinant glycosidase which cleaves within the chitobiose core of high mannose and some hybrid oligosaccharides from N-linked glycoproteins. A tagged version, which is a recombinant protein fusion of Endoglycosidase H and maltose binding protein is also available, Endo Hf (NEB #P0703).

  • Recombinant enzyme with no detectable exoglycosidase or other endoglycosidase contaminating activities
  • Glycerol-free for optimal performance in HPLC and mass spectrometry analysis
  • ≥95% purity, as determined by SDS-PAGE and intact ESI-MS
  • Optimal activity and stability for up to 24 months
Bioz Badge Exists : True
Catalog # Size Concentration
P0702S 10000 units 500000 units/ml
P0702L 50000 units 500000 units/ml

Product Information

Description



Endoglycosidase H is a recombinant glycosidase which cleaves within the chitobiose core of high mannose and some hybrid oligosaccharides from N-linked glycoproteins.


60 µg of RNase B was incubated with 3,000 units of Endo H or Endo Hf under standard assay conditions

60 mg of RNase B was incubated with 3,000 units of Endo H or Endo Hf under standard assay conditions.
Aliquots were removed at various time points and measured for released carbohydrate. [Dubois et al. (1956) Anal. Chem. 28, 350-356].
Mobility Shift Analysis
Mobility Shift Analysis
1 unit of Endo H, Endo Hf or PNGase F was incubated per 10 µg of RNase B under standard assay conditions. At various time points, aliquots were removed and analyzed on a 10-20% SDS-PAGE gel for carbohydrate (CHO) release. 1 unit is defined as the amount of enzyme required to remove >95% of the carbohydrate from 10 µg of RNase B in one hour at 37°C.

Product Source

Cloned from Streptomyces plicatus (2) and overexpressed in E.coli (3).
This product is related to the following categories:
Endoglycosidases,
Proteome Analysis,
This product can be used in the following applications:
Expression Systems,
Glycan Sequencing,
Proteomics,
Recombinant Glycoprotein Expression,
Glycoprotein Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    P0702S -20
    Component Name Component # Stored at (°C) Amount Concentration
    Endo H P0702SVIAL -20 1 x 0.02 ml 500,000 units/ml
    GlycoBuffer 3 B1720SVIAL -20 1 x 1 ml 10 X
    Glycoprotein Denaturing Buffer B1704SVIAL -20 1 x 1 ml 10 X
  • NEB # Stored at (°C)
    P0702L -20
    Component Name Component # Stored at (°C) Amount Concentration
    Endo H P0702LVIAL -20 1 x 0.1 ml 500,000 units/ml
    GlycoBuffer 3 B1720SVIAL -20 1 x 1 ml 10 X
    Glycoprotein Denaturing Buffer B1704SVIAL -20 1 x 1 ml 10 X

Properties & Usage

Unit Definition

One unit is defined as the amount of enzyme required to remove > 95% of the carbohydrate from 10 µg of denatured RNase B in 1 hour at 37°C in a total reaction volume of 10 µl (10 NEB units = 1 IUB milliunit).

Unit Definition Assay:
10 µg of RNase B are denatured with 1X Glycoprotein Denaturing Buffer at 100°C for 10 minutes. After the addition of 1X GlycoBuffer 3, two-fold dilutions of Endo H are added and the reaction mix is incubated for 1 hour at 37°C. Separation of reaction products is visualized by SDS-PAGE.

1X Glycoprotein Denaturing Buffer
0.5% SDS
40 mM DTT

Reaction Conditions

1X GlycoBuffer 3
Incubate at 37°C

1X GlycoBuffer 3
50 mM sodium acetate
(pH 6 @ 25°C)

Storage Buffer

20 mM Tris-HCl
50 mM NaCl
5 mM EDTA
pH 7.5 @ 25°C

Heat Inactivation

75°C for 10 minutes

Molecular Weight

Apparent: 29 kDa

Application Features

  • Removal of high mannose N-glycans from glycoproteins

Product Notes

  1. Enzymatic activity is not affected by SDS.
  2. To deglycosylate a native glycoprotein, longer incubation time as well as more enzyme may be required.
  3. Activity at different temperatures (measured after a 1 hour incubation of glycosidase and denatured RNase B at the given temperature): 37°C - 100%; 30°C - 65%; 25°C - 40%; 17°C - 25% and  2°C - 0%.
  4. Typical reaction conditions: Please see FAQs.

References

  1. Maley, F. et al. (1989). Anal. Biochem. 180, 195-204.
  2. Robbins, P. et al. (1984). J. Biol. Chem. 259, 7577-7583.
  3. Guan, C. and Wong,S. New England Biolabs, unpublished observations.

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. What is the difference between PNGase F, Endo H and O-Glycosidase?
  2. What is the difference between Endo H and Endo Hf?
  3. I tried the Endo H/Hf on my glycoprotein and it failed. What could be the problem?
  4. How much Endo H/Endo Hf should I use?
  5. Is EndoH/ Endo Hf inhibited by SDS?
  6. What are the typical reaction conditions for Endo H?
  7. Are Protease Inhibitors acceptable for use in an Endo H/Hf reaction?
  8. What are Glycosidases and their uses?
  9. Why have the NEB Glycosidase enzymes changed reaction buffers? What are the new reaction buffers and can I still use an enzyme with its old buffer? Where can I find the composition of the old buffers?
  10. What is a good endoglycosidase substrate?
  11. Do detergents inhibit exoglycosidases/endoglycosidases?

Tech Tips

You can use this enzyme under native or denaturing conditions
Under native conditions we recommend adding more enzyme and using longer incubation times
Enzymatic activity is not affected by SDS
A good positive control substrate is RNase B
