1 kb DNA Ladder

This product is available in Quick-Load Purple format - enjoy the convenience of a ready-to-load format.

Product Introduction

  • Size range: 500 bp to 10 kb
  • Value pricing

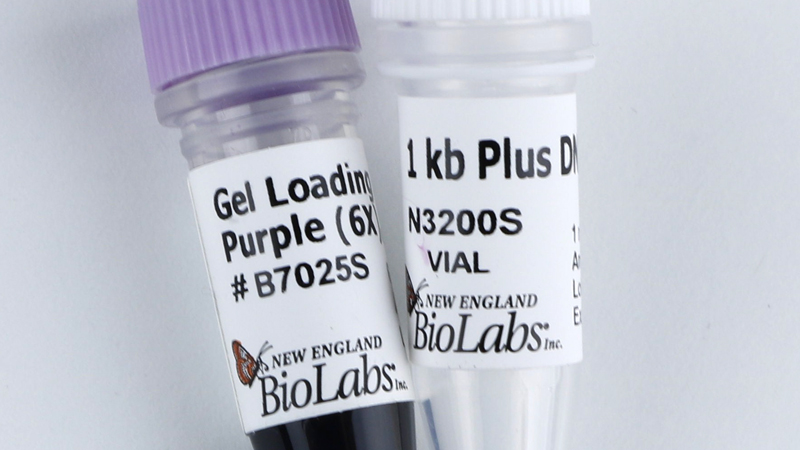

  • Supplied with free vial of Gel Loading Dye, Purple (6X), no SDS (NEB #B7025).
  • Easy to identify reference bands
  • Small size suitable for 200 gel lanes; large size suitable for 1000 gel lanes
1 kb DNA Ladder



Bioz Badge Exists : True
Catalog # Size Concentration
N3232S 200 gel lanes (0.2 ml) 500 µg/ml
N3232L 1000 gel lanes (1.0 ml) 500 µg/ml

Product Information

Description

A number of proprietary plasmids are digested to completion with appropriate restriction enzymes to yield 10 bands suitable for use as molecular weight standards for agarose gel electrophoresis. The digested DNA includes fragments ranging from 0.5-10.0 kilobases (kb). The 3.0 kb fragment has increased intensity to serve as a reference band. The approximate mass of DNA in each of the bands is provided (assuming a 0.5 μg load) for approximating the mass of DNA in comparably intense samples of similar size.

Comes supplied with 1 vial of Gel Loading Dye, Purple (6X), no SDS.

NEB also offers a Quick-Load version of this ladder with purple dye.

  • Recommended gel percentage range: 0.8-1.2%
  • Optimum separation on 1%



Figure 1: 1kb DNA Ladder visualized

1 kb DNA Ladder

1 kb DNA Ladder visualized by ethidium bromide staining on a 0.8% TAE agarose gel. Mass values are for 0.5 µg/gel lane.
This product is related to the following categories:
DNA Markers & Ladders
This product can be used in the following applications:
DNA Analysis

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Bases

Fragment Mass (ng) bp
1 42 10,002
2 42 8,001
3 50 6,001
4 42 5,001
5 33 4,001
6 125 3,001
7 48 2,000
8 36 1,500
9 42 1,000
10a 21 517
10b 21 500

Effective Size Range

500bp to 10,002bp

Storage Buffer

10 mM Tris-HCl
1 mM EDTA
pH 8 @ 25°C

Product Notes

  1. This ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  2. We recommend loading 0.5 μg of 1 kb DNA Ladder diluted in sample buffer.
  3. All fragments have a 4-base, 5´ overhangs that can be end labeled using T4 Polynucleotide Kinase (#M0201) or filled-in using DNA Polymerase I, Klenow Fragment (#M0210) (1). Use α-[32P] dATP or α-[32P] dTTP for the fill-in reaction.
  4. 1 kb DNA Ladder is stable for at least 3 months at 4°C.
  5. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength.  DNA may denature if diluted in dH20.
  6. 1X Gel Loading Dye, Purple (6X), no SDS:
    2.5% Ficoll®-400
    10mM EDTA
    3.3mM Tris-HCL (pH 8.0@25°C)
    0.02% Dye 1
    0.001% Dye 2
  7. Due to the limitations of the acrylamide gel technology, one or two extra bands may be visible on the DNA ladders when run on a polyacrylamide gel.

References

  1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual(2nd Ed.). 10.51-10.67.

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Why are there extra bands visible on polyacrylamide gels?
  2. What are the overhangs on the DNA ladder fragments? Can I end-label them using the T4 polynucleotide kinase (PNK)? What about the Klenow fragment?
  3. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
  4. How can I quantify the amount of DNA in each band of a marker?
  5. Can I use Midori Green with the DNA Ladders from NEB?
  6. Can I use SYBR® and/or GelRed® dyes with the DNA Ladders from NEB?
  7. Why is my DNA Ladder floating out the wells? Why are there no bands visible in my DNA ladder gel lane?

Tech Tips

To make it ready-to-load, dilute in TE buffer instead of water.
