EnGen® Lba Cas12a (Cpf1)
Gray property icon for NEB r2.1 recombinant Gray property icon for incubation temperature 37° Gray property icon for heat inactivation 65°

We are excited to announce that all reaction buffers are now BSA-free. NEB began switching our BSA-containing reaction buffers in April 2021 to buffers containing Recombinant Albumin (rAlbumin) for restriction enzymes and some DNA modifying enzymes. Find more details at www.neb.com/BSA-free.

Product Introduction

EnGen Lba Cas12a (Cpf1) is a programmable DNA endonuclease guided by a single guide RNA (gRNA). Targeting requires a gRNA complementary to the target site as well as a 5' TTTV protospacer adjacent motif (PAM) on the DNA strand opposite the target sequence. Cleavage by EnGen Lba Cas12a (Cpf1) occurs ~17 bases 3' of the PAM and leaves 5' overhanging ends.

  • T-rich TTTV PAM sequence opens up additional genomic regions for targeting
  • Shorter, 40-44 base guide RNA
  • Two nuclear localization signals for improved transport to the nucleus
  • 5’ overhanging termini on cleavage products
  • Active from 16 to 48°C
  • Maintains activity at lower temperatures than the Acidaminococcus orthologs, permitting editing in ectothermic organisms such as zebra fish and xenopus
  • High concentration liquid format can be used for microinjection, electroporation and lipofection.
Bioz Badge Exists : True
Catalog # Size Concentration
M0653S 70 pmol 1 µM
M0653T 2000 pmol 100 µM

Product Information

Description

EnGen® Lba Cas12a from Lachnospiraceae bacterium ND2006 is a site-specific DNA endonuclease guided by a single 41-44 nucleotide guide RNA (gRNA) (1). Targeting requires a gRNA complementary to the target site as well as a 5’ TTTV protospacer adjacent motif (PAM) on the DNA strand opposite the target sequence. Cleavage by EnGen Lba Cas12a occurs ~18 bases 3′ of the PAM and leaves 5′ overhanging ends. EnGen Lba Cas12a has Simian virus 40 (SV40) T antigen nuclear localization sequences (NLS) at both the N and C-termini of the protein.

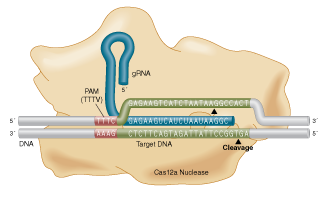

Schematic representation of Lba Cas12a nuclease sequence recognition and DNA cleavage

Cas12a

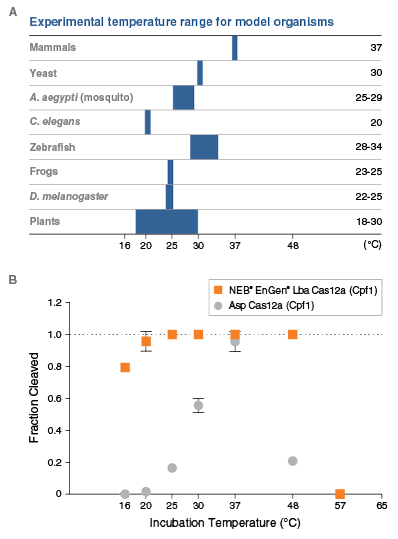

Expanded temperature range of Lba Cas12a

Cas12a Temperature

Purified Lba or Asp Cas12a proteins were used to form RNP complexes with their canonical guide RNAs. The DNA target is a single a PCR product 5´-end labeled with FAM. Lba or Asp Cas12a RNPs were incubated with target DNA at the temperatures indicated at a ratio of 10:1 RNP to DNA for 10 minutes. Cleavage products were resolved by capillary electrophoresis and quantitated by integration of signal corresponding to intact and cleaved fragments. Data are shown as the mean +/- SD of duplicate experiments.

Product Source

EnGen Lba Cas12a from Lachnospiraceae bacterium ND2006 is expressed as a N-terminal 6XHis-tagged fusion in E. coli.
This product is related to the following categories:
CRISPR/Cas Nucleases

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    M0653T -20
    Component Name Component # Stored at (°C) Amount Concentration
    EnGen® Lba Cas12a (Cpf1) M0653TVIAL -20 1 x 0.02 ml 100 µM
    EnGen Lba Cas12a Diluent B0653AVIAL -20 2 x 1 ml 1 X
    NEBuffer™ r2.1 B6002SVIAL -20 1 x 1.25 ml 10 X

Properties & Usage

Reaction Conditions

1X NEBuffer™ r2.1
Incubate at 37°C

1X NEBuffer™ r2.1
50 mM NaCl
10 mM Tris-HCl
10 mM MgCl2
100 µg/ml Recombinant Albumin
(pH 7.9 @ 25°C)

Storage Buffer

500 mM NaCl
20 mM sodium acetate
0.1 mM EDTA
0.5 mM TCEP-HCl
50% Glycerol
pH 6 @ 25°C

Heat Inactivation

65°C for 10 minutes

Product Notes

  1. 100 µM is equal to 15.1 mg/ml EnGen Lba Cas12a.

References

  1. Zetsche, B., et. al. (2015). Cell. 163, 759-771.
  2. Moreno-Mateos, M.A., et al. (2017). Nat. Commun.. 8, 2024. PubMedID: 29222508

FAQs & Troubleshooting

FAQs

  1. What are the differences between EnGen® Lba Cas12a (Cpf1) (NEB #M0653) and EnGen Spy Cas9 NLS (NEB #M0646)?
  2. Which nuclear localization signal is fused to EnGen® Lba Cas12a (Cpf1)?
  3. Why am I observing limited or no digestion with EnGen® Lba Cas12a (Cpf1)?
  4. Can mutations generated with EnGen Lba Cas12a (Cpf1) be detected using T7 Endonuclease I (NEB #M0302) or the EnGen Mutation Detection Kit (NEB #E3321S)?
  5. Can gRNA for use with EnGen Lba Cas12a (Cpf1) be generated using the EnGen sgRNA Synthesis Kit, S. pyogenes (NEB #E3322)?
  6. How do I design a guide RNA for use with EnGen Lba Cas12a?
  7. How do I dilute the enzyme to 1 μM for in vitro reactions?
  8. Can you tell me more about the switch from BSA to Recombinant Albumin (rAlbumin) in NEBuffers?
  9. What is in EnGen Lba Cas12a Diluent (NEB #B0653A)?
