EnGen® Spy Cas9 NLS
Gray property icon for NEB r3.1 Gray property icon for cloned at NEB recombinant Gray property icon for incubation temperature 37° Gray property icon for heat inactivation 65°

Now available: EnGen Spy Cas9 HF1 NEB #M0667 for reduction of off-target cleavage

We are excited to announce that all reaction buffers are now BSA-free. NEB began switching our BSA-containing reaction buffers in April 2021 to buffers containing Recombinant Albumin (rAlbumin) for restriction enzymes and some DNA modifying enzymes. Find more details at www.neb.com/BSA-free.

Product Introduction

  • Ideal for direct introduction of Cas9/sgRNA complexes
  • Dual NLS for improved transport to the nucleus
  • Compatible with EnGen® sgRNA Synthesis Kit, S. pyogenes (NEB #E3322S) and the EnGen Mutation Detection Kit (NEB #E3321S)
Bioz Badge Exists : True
Catalog # Size Concentration
M0646T 500 pmol 20 µM
M0646M 2500 pmol 20 µM

Featured Videos

View Video Library
  • crispr_cas9_animation_282x210_thumb

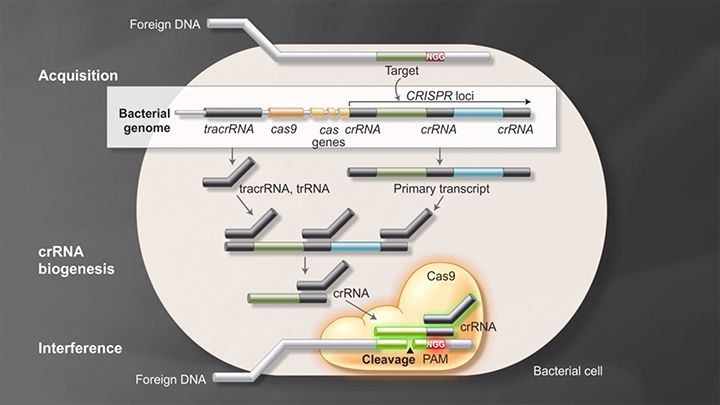

    Bacterial Adaptive Immunity with CRISPR/Cas9

  • NEB TV Episode 7

    NEB® TV Ep. 7 – Synthetic Biology/ CRISPR

Product Information

Description

EnGen Spy Cas9 NLS, is an RNA-guided endonuclease that catalyzes site- specific cleavage of double stranded DNA. The location of the break is within the target sequence 3 bases from the NGG PAM (Protospacer Adjacent Motif) (1). The PAM sequence, NGG, must follow the targeted region on the opposite strand of the DNA with respect to the region complementary sgRNA sequence. EnGen Spy Cas9 NLS contains Simian virus 40 (SV40) T antigen nuclear localization sequence (NLS) on the N- and C- termini of the protein.

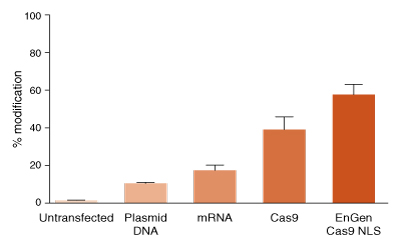

Increased genome editing efficiency using Cas9 RNP delivery

Direct
Cas9 and sgRNA targeting a human gene were delivered to HEK293 cells by transfection. Transfected plasmid DNA contained expression cassettes for 2x NLS (N- and C-terminal) Cas9 and sgRNA. Plasmid DNA was delivered using TransIT-X2 (Mirus). Transfected mRNA was modified with pseudouridine and 5-methylcytosine and encoded 2x NLS (N-and C-terminal) Cas9. sgRNA was co-transfected with the mRNA using TransIT-mRNA. Cas9 RNPs were delivered in reverse transfections using Lipofectamine RNAiMAX (Life Technologies) using 10 nanomolar final concentration of ribonucleoprotein (RNP). Cas9 has no NLS in the protein sequence. EnGen Cas9 has N- and C-terminal NLSs. The efficiency of editing was determined using T7 Endonuclease I assay and is expressed as % modification.

Product Source

An E. coli strain that carries the cloned Cas9 gene from Streptococcus pyogenes with N- and C-terminal Simian virus 40 (SV40) nuclear localization signals (NLS) and a N- terminal 6XHis tag.
This product is related to the following categories:
CRISPR/Cas Nucleases

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Reaction Conditions

1X NEBuffer™ r3.1
Incubate at 37°C

1X NEBuffer™ r3.1
100 mM NaCl
50 mM Tris-HCl
10 mM MgCl2
100 µg/ml Recombinant Albumin
(pH 7.9 @ 25°C)

Storage Buffer

300 mM NaCl
10 mM Tris-HCl
0.1 mM EDTA
1 mM DTT
50% Glycerol
pH 7.4 @ 25°C

Heat Inactivation

65°C for 5 minutes

Product Notes

  1. 20 μM is equal to 3.22 mg/ml

References

  1. Jinek M. et al. (2012). Science. 816-821. PubMedID: 22745249,

FAQs & Troubleshooting

FAQs

  1. Where is the nuclear localization signal on EnGen® Spy Cas9 NLS located?
  2. Which nuclear localization signal is fused to EnGen® Spy Cas9 NLS?
  3. What is the difference between EnGen® Spy Cas9 NLS (NEB #M0646) and Cas9 NLS, S.pyogenes (NEB #M0641)?
  4. Why do I observe incomplete digestion?
  5. Does NEB provide plasmids for gRNA cloning?
  6. How do I dilute the enzyme to 1 μM for in vitro reactions?
  7. Can you tell me more about the switch from BSA to Recombinant Albumin (rAlbumin) in NEBuffers?
