Cas9 Nuclease, S. pyogenes
Gray property icon for NEB r3.1 Gray property icon for cloned at NEB recombinant Gray property icon for incubation temperature 37° Gray property icon for heat inactivation 65°

Now available: EnGen Spy Cas9 HF1 NEB #M0667 for reduction of off-target cleavage

We are excited to announce that all reaction buffers are now BSA-free. NEB began switching our BSA-containing reaction buffers in April 2021 to buffers containing Recombinant Albumin (rAlbumin) for restriction enzymes and some DNA modifying enzymes. Find more details at www.neb.com/BSA-free.

Product Introduction


Bioz Badge Exists : True
Catalog # Size Concentration
M0386S 90 pmol 1000 nM
M0386T 500 pmol 20 µM
M0386M 2500 pmol 20 µM

Featured Videos

View Video Library
  • crispr_cas9_animation_282x210_thumb

    Bacterial Adaptive Immunity with CRISPR/Cas9

  • NEB TV Episode 7

    NEB® TV Ep. 7 – Synthetic Biology/ CRISPR

Product Information

Description









Cas9 Nuclease, S. pyogenes, is an RNA-guided endonuclease that catalyzes site-specific cleavage of double stranded DNA. The location of the break is within the target sequence 3 bases from the NGG PAM (Protospacer Adjacent Motif) (1). The PAM sequence, NGG, must follow the targeted region on the opposite strand of the DNA with respect to the region complementary sgRNA sequence.

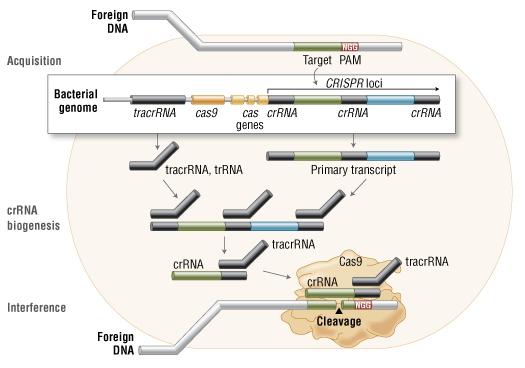

Cas9 in vivo: Bacterial Adaptive Immunity Cas9 in vivo: Bacterial Adaptive Immunity

CRISPR loci in the bacterial genome are transcribed and processed into crRNA. Cas9 endonuclease complexed with a crRNA and separate tracrRNA cleaves foreign DNA containing a 20-nucleotide crRNA complementary sequence adjacent to the PAM sequence. (Figure not drawn to scale.)

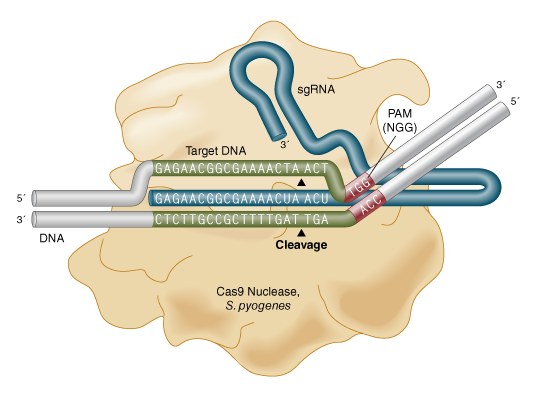

Cas9 nuclease, S. pyogenes, complexed with an sgRNA Schematic representation of Cas9 Nuclease, S. pyogenes sequence recognition and DNA cleavage
Cleavage occurs three nucleotides upstream of the PAM sequence (shown in red). sgRNAs are complimentary to the strand of DNA opposite of the PAM.

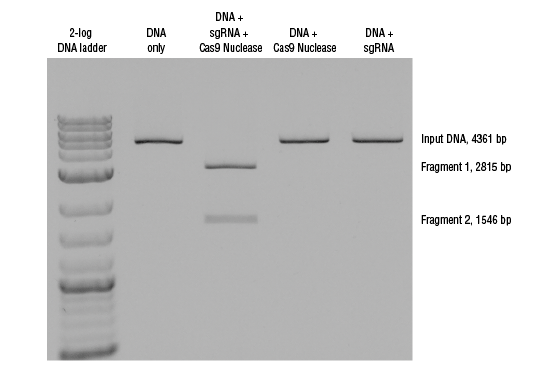

In vitro DNA cleavage using Cas9 Nuclease, S. pyogenes In Vitro DNA cleavage using Cas9 Nuclease, S. pyogenes

Reactions were set up according to recommended conditions, and cleavage products were resolved on a 1% agarose TBE gel. Input DNA is PvuII-linearized pBR322 plasmid DNA.

Product Source

A His-tagged engineered variant of E. coli that carries the cloned Cas9 gene from Streptococcus pyogenes.
This product is related to the following categories:
Validation of CRISPR-based Gene Editing,
CRISPR/Cas Nucleases,

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Reaction Conditions

1X NEBuffer™ r3.1
Incubate at 37°C

1X NEBuffer™ r3.1
100 mM NaCl
50 mM Tris-HCl
10 mM MgCl2
100 µg/ml Recombinant Albumin
(pH 7.9 @ 25°C)

Storage Buffer

300 mM NaCl
10 mM Tris-HCl
0.1 mM EDTA
1 mM DTT
50% Glycerol
pH 7.4 @ 25°C

Heat Inactivation

65°C for 5 minutes

Product Notes

  1. 1,000 nM is equal to 159 ng/μl.
  2. If planning to use higher concentration Cas9 Nuclease, S. pyogenes (M0386T and M0386M) for in vitro digestion of DNA, the enzyme should be diluted to 1 µM using Diluent B (NEB #B8002S) prior to the reaction assembly.

References

  1. Jinek M. et al. (2012). Science. 816-821 doi: 10.1126/Science.1225829. Epub 2012 Jun 28.. PubMedID: 22745249

FAQs & Troubleshooting

FAQs

  1. Why do I observe incomplete digestion?
  2. Why does digestion efficiency differ between two SgRNAs?
  3. Does NEB provide plasmids for gRNA cloning?
  4. Does Cas9 Nuclease contain a nuclear localization signal (NLS)?
  5. Is Cas9 Nuclease fused with a N-terminal 6XHis tag?
  6. How do I dilute the enzyme to 1 μM for in vitro reactions?
  7. Can you tell me more about the switch from BSA to Recombinant Albumin (rAlbumin) in NEBuffers?
