Product Class: Kit

Ph.D.™ Peptide Display Cloning System

Product Introduction

The Ph.D.™ Peptide Display Cloning System contains M13KE vector, the parent vector of NEB’s Ph.D. libraries. The included M13 extension primer is used to make DNA duplex out of a user provided synthetic oligo, with or without random bases. The display system is best used to display small peptides, i.e. sequences of 50 amino acids or less.

  • M13KE Vector is based on M13mp18 containing the entire M13 genome, with specific cloning sites at the 5’ gIII, encoding pIII coat protein
  • Allows for user-designed custom peptide library construction
  • May be transfected into F’ E. coli to obtain infectious phage
Bioz Badge Exists : True
Catalog # Size Concentration
E8101S 20 µg

Product Information

Description

M13KE is a simple M13 derivative in which cloning sites have been introduced at the 5´ end of gene III for display of short peptide sequences as N-terminal pIII fusions. Because this is a phage, rather than a phagemid vector, all 5 copies of pIII on the surface of each virion will be fused to the cloned peptide. Since displayed proteins longer than 20–30 amino acids have a deleterious effect on the infectivity function of pIII, this vector is suitable only for the display of short peptides. Additionally, the vector does not carry a plasmid replicon or antibiotic resistance, so it is necessary to propagate the vector as phage, rather than a plasmid (i.e., titer for plaques, not colonies). This simplifies the intermediate amplification steps during panning considerably, as it is not necessary to express antibiotic genes before plating, or to use helper phage during amplification. The steps necessary to clone a peptide library into M13KE are outlined below. To clone a single peptide sequence, reactions can be scaled down.

Figure 1
figure 1

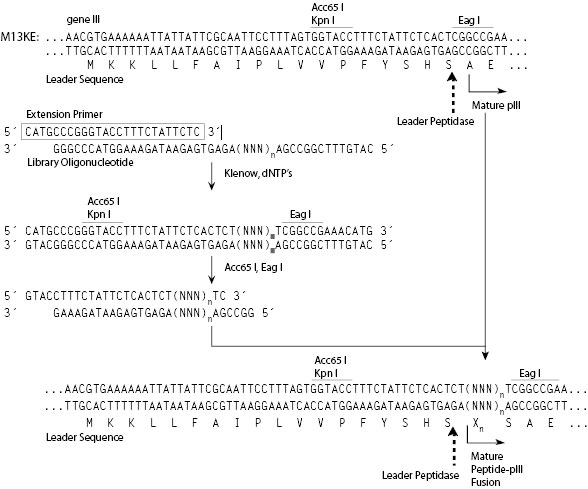

Construction of a peptide library in M13KE. Schematic shows the sequence of the peptide cloning site as well as the strategy for designing and cloning a peptide library into M13KE. The sequence of the extension primer is outlined. N = A, G, C or T; X = any user defined or randomized amino acid.
This product is related to the following categories:
Phage Display
This product can be used in the following applications:
Phage Display

Kit Components

System Components

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    E8101S -20
    Component Name Component # Stored at (°C) Amount Concentration
    M13KE gIII Cloning Vector N3541SVIAL -20 1 x 20 µg 1 mg/ml
    M13 Extension Primer S1203AVIAL -20 1 x 2,150 pmol 40 pmol/μl

Properties & Usage

References

  1. Sambrook, J. and Russell D.W (2001). Molecular Cloning: A Laboratory Manual, (3rd ed.). Cold Spring Harbor, Cold Spring Harbor Laboratory Press.

FAQs & Troubleshooting

FAQs

  1. Can cDNA libraries be cloned into M13KE?
  2. Can I display antibody fragments or proteins at the N-terminus of pIII coat protein with M13KE?
  3. What are the differences between pIII and pVIII display?
  4. Does the Ph.D.™ Phage Display Cloning System come with double-stranded DNA vector?
  5. What type of strain do I use with the Ph.D.™ Phage Display Cloning System?
  6. I have done all the standard troubleshooting for my cloning and transfection steps and I still cannot get the desired clone in M13KE?

Troubleshooting

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.

New England Biolabs (NEB) is committed to practicing ethical science – we believe it is our job as researchers to ask the important questions that when answered will help preserve our quality of life and the world that we live in. However, this research should always be done in safe and ethical manner. Learn more.
