NEBNext® ARTIC SARS-CoV-2 RT-PCR Module

The Small size of this product was discontinued on December 15, 2024. The Large size (NEB #E7626L) will continue to be available.

For improved performance with BA.2 variants, spike-in primers can now be provided, for use in combination with VarSkip Short v2 primers. Please see this FAQ for more information, including primer sequences.

See below, including Figure 1 in the Product Information section, for information on VarSkip Short v2 performance with spike-in primers. Information on primer variant overlaps can be found here.

A bulk format (2,304 reactions) is also available. Please contact us for more information.

Product Introduction

The NEBNext® ARTIC products were developed in response to the critical need for reliable and accurate methods for SARS-CoV-2 sequencing. These are based on the original work of the ARTIC Network(1) to develop a multiplexed amplicon-based whole-viral-genome sequencing approach.

NEBNext ARTIC SARS-CoV-2 RT-PCR Module contains the reagents required for cDNA synthesis and targeted cDNA amplification from SARS-CoV-2 genomic RNA.

This kit includes two options for primers, including new VarSkip Short v2 primers:

  1. See below, including Figure 1 in the Product Information section, for information on VarSkip Short v2 performance with spike-in primers. Information on primer variant overlaps can be found here.

  2. The V3 ARTIC primers have been balanced, using methodology developed at NEB based on empirical data from sequencing. In combination with optimized reagents for RT-PCR, the kits deliver improved uniformity of amplicon yields from gRNA across a wide copy number range.

Full kits that also include library prep reagents optimized for the ARTIC workflow are available, for smaller (~150 bp) (NEB #E7658) or larger (~400 bp) (NEB #E7650) insert libraries for Illumina® sequencing, and for Oxford Nanopore Technologies® sequencing (NEB #E7660). Note that E7650 does not include VarSkip v2 primers.

  • Includes two primer options: new VarSkip Short v2, for improved Omicron coverage, or ARTIC V3
  • Information on primer variant overlaps can be found here
  • Improved uniformity of SARS-CoV-2 genome coverage, with balanced primer pools
  • Effective with a wide range of viral genome inputs (10-10,000 copies)
  • Streamlined, high-efficiency protocol

1. (Josh Quick 2020. nCoV-2019 sequencing protocol v2 (GunIt). protocols.io https://dx.doi.org/10.17504/protocols.io.bdp7i5rn).

Bioz Badge Exists : True
Catalog # Size Concentration
E7626L 96 reactions

Product Information

Description

The ARTIC SARS-CoV-2 protocol from the ARTIC Network is a multiplexed amplicon approach covering the whole viral genome. The NEBNext ARTIC SARS-CoV-2 RT-PCR Module is based on this method and incorporates optimized reagents for the cDNA synthesis and targeted cDNA amplification steps.

A single RT protocol is used regardless of input amount (10-10,000 viral genome copies), and no normalization step is required ahead of targeted amplification.

This kit includes two options for primers, including new VarSkip Short v2 primers:

  1. The VarSkip (for Variant Skip) Short primers have been designed at NEB to provide improved performance with SARS-CoV-2 variants, including the Omicron variant. VarSkip Short v2 primer pools generate ~550bp amplicons. Please see the FAQ section and the product manual for additional detail. Information on primer variant overlaps can be found here.

  2. The V3 ARTIC primers have been balanced, using methodology developed at NEB based on empirical data from sequencing. In combination with optimized reagents for RT-PCR, the kits deliver improved uniformity of amplicon yields from gRNA across a wide copy number range.

Full kits that also include library prep reagents optimized for the ARTIC workflow are available, for smaller (~150 bp) (NEB #E7658) or larger (~400 bp) (NEB #E7650) insert libraries for Illumina® sequencing, and for Oxford Nanopore Technologies® sequencing (NEB #E7660). Note that E7650 does not include VarSkip v2 primers.

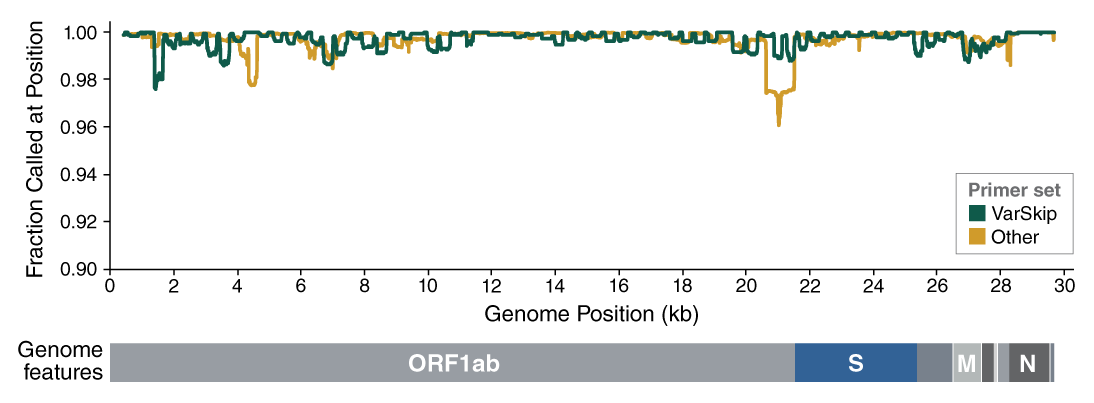

Figure 1: Sequence coverage of SARS-CoV-2 genomes with VarSkip Short v2 plus spike-in primers



Consensus genomes known to be generated using VarSkip Short 2 (+ supplementary primers) (green) are compared with other genomes (yellow) submitted to Genbank between 2022-08-01 and 2022-09-24. Genomes were aligned to the NC_045512.2 reference (minimap2 -x map-ont -r 20000 --score-N=0, v.2.24). Ns were tabulated using Qualimap (v2.2.2).

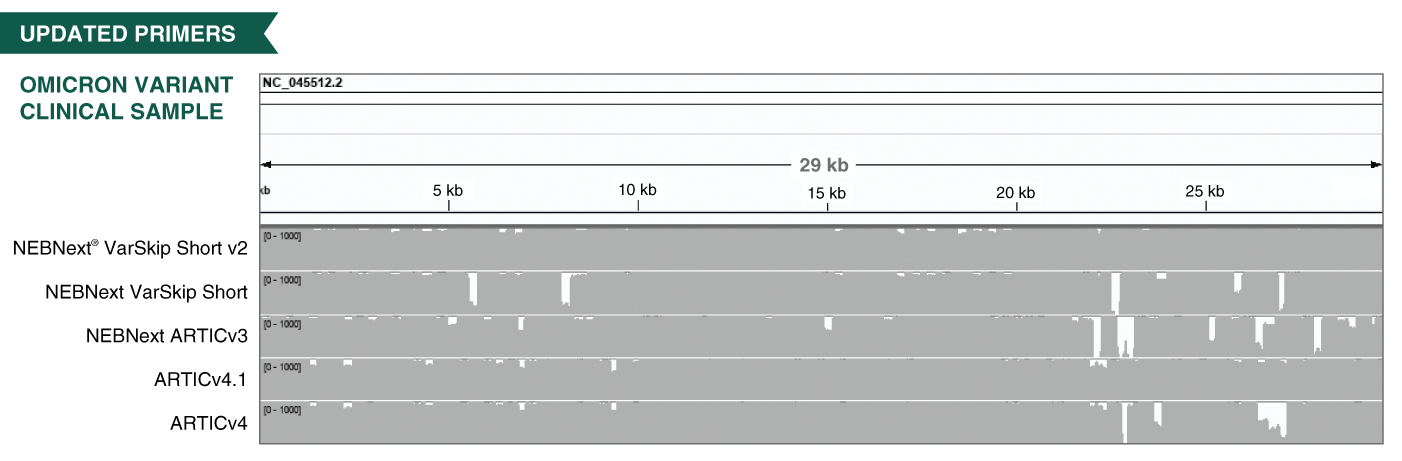

Figure 2: Sequence coverage of a SARS-CoV-2 Omicron clinical sample with updated primer schemes



Integrative Genome Viewer visualization of read coverage across the SARS-CoV-2 genome (log scale). Amplicons were generated using NEBNext® VarSkip Short SARS-CoV-2 v2 primer pools, NEBNext VarSkip Short SARS-CoV-2 primer pools, NEBNext ARTIC SARS-CoV-2 primer pools (ARTICv3), MilliporeSigma ARTICv4 primer pools plus IDT ARTICv4.1 spike-in primers (ARTICv4.1), or MilliporeSigma ARTICv4 primer pools. The same Omicron variant SARS-CoV-2 viral gRNA clinical sample served as a template for all primer schemes except ARTICv3. Libraries were constructed using the NEBNext ARTIC SARS-CoV-2 FS Library Prep Kit (Illumina®) and sequenced on a MiSeq® instrument (2x75 bp). Coverage depth per base was determined, reads were down-sampled to 0.5M PE reads with seqtk and aligned to SARS-CoV-2 reference genome (NCBI, NC_045512) with Bowtie2.

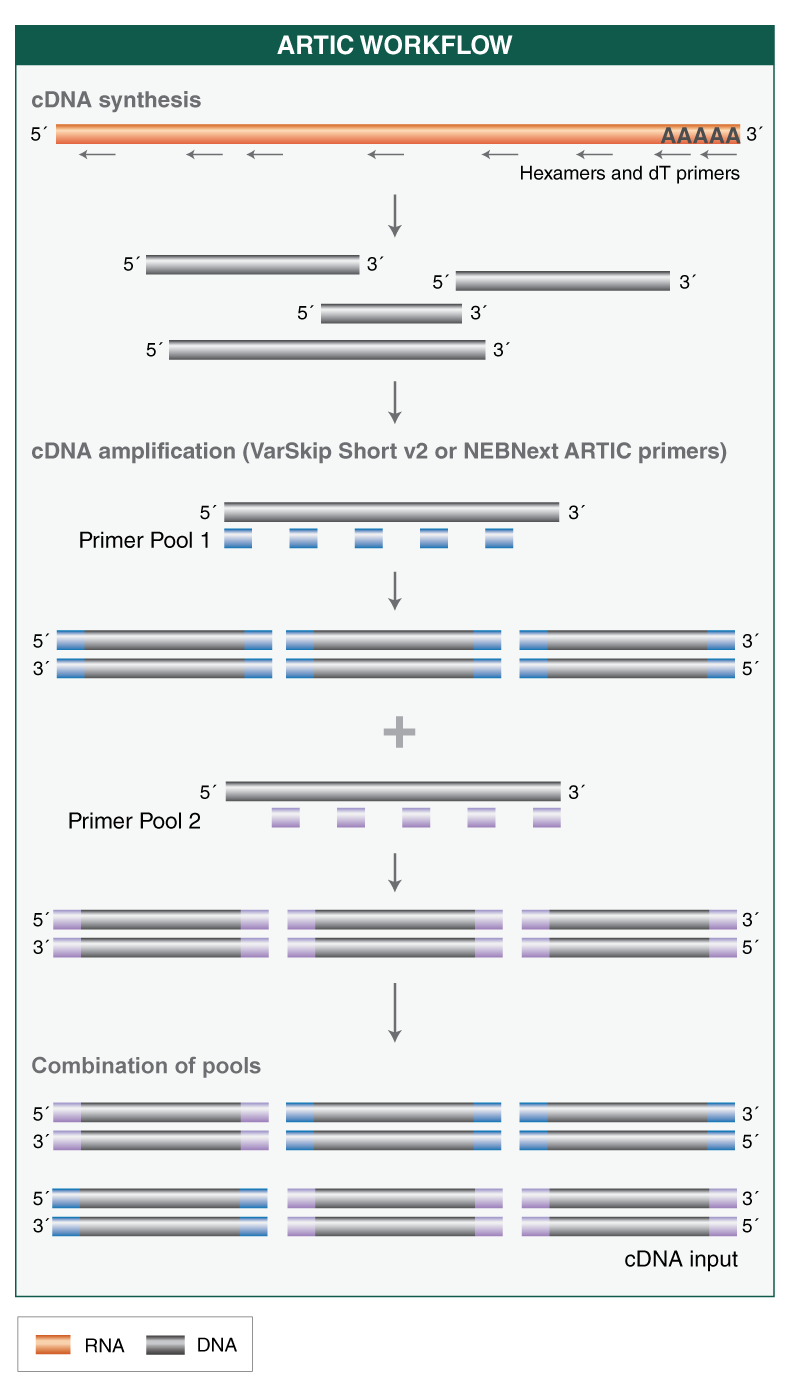

Figure 3: Workflow for the NEBNext ARTIC SARS-CoV-2 RT-PCR Module with VarSkip Short v2 or NEBNext ARTIC primers



This product is related to the following categories:
NEBNext® ARTIC products for SARS-CoV-2 sequencing,
RNA Library Prep for Illumina,

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    E7626L -20
    Component Name Component # Stored at (°C) Amount Concentration
    LunaScript® RT SuperMix E7651AAVIAL -20 1 x 0.192 ml 5 X
    Q5® Hot Start High-Fidelity 2X Master Mix E7652AAVIAL -20 1 x 1.2 ml 2 X
    0.1X TE E7657AVIAL -20 2 x 1.3 ml Not Applicable
    Nuclease-free Water E7667AVIAL -20 1 x 1.5 ml Not Applicable
    NEBNext® ARTIC SARS-CoV-2 Primer Mix 1 E7725AAVIAL -20 1 x 0.168 ml Not Applicable
    NEBNext® ARTIC SARS-CoV-2 Primer Mix 2 E7726AAVIAL -20 1 x 0.168 ml Not Applicable
    NEBNext® VarSkip Short v2 SARS-CoV-2 Primer Mix 1 E7872AAVIAL -20 1 x 0.168 ml Not Applicable
    NEBNext® VarSkip Short v2 SARS-CoV-2 Primer Mix 2 E7873AAVIAL -20 1 x 0.168 ml Not Applicable

Properties & Usage

Materials Required but not Supplied

  • 80% Ethanol (freshly prepared)
  • Nuclease-free Water
  • DNA LoBind Tubes (Eppendorf® #022431021)
  • Magnetic rack/stand (NEB #S1515, Alpaqua®, cat. #A001322 or equivalent)
  • Thermocycler
  • Vortex Mixer
  • Microcentrifuge
  • Agilent® Bioanalyzer® or similar fragment analyzer and associated consumables
  • DNase RNase free PCR strip tubes (USA Scientific®1402-1708)
  • SPRIselect® Reagent Kit (Beckman Coulter, Inc. #B23317) or AMPure® XP Beads (Beckman Coulter, Inc. #A63881)

Features

  • Improved uniformity of SARS-CoV-2 genome coverage depth with a more balanced primer pool
  • Effective with a wide range of viral genome inputs (10-10,000 copies)
  • Streamlined, high-efficiency protocol

References

  1. Josh Quick (2020). nCoV-2019 sequencing protocol v2 (GunIt). protocols.io.

Tools & Resources

Web Tools

FAQs & Troubleshooting

FAQs

  1. What is the difference between the NEBNext VarSkip Short v2 SARS-CoV-2 Primer Mixes and the original NEBNext VarSkip Short SARS-CoV-2 Primer Mixes?
  2. What is the difference between the NEBNext VarSkip v2 Short SARS-CoV-2 Primer Mixes and the NEBNext ARTIC SARS-CoV-2 Primer Mixes?
  3. Where can I find primer sequence information for NEBNext VarSkip Short v2 SARS-CoV-2 Primer Mixes and NEBNext ARTIC SARS-CoV-2 Primer Mixes?
  4. Can the NEBNext ARTIC SARS-CoV-2 Primer Mixes and NEBNext VarSkip Short v2 SARS-CoV-2 Primer Mixes be added to the same targeted amplification reaction?
  5. Which primer scheme should I use: NEBNext ARTIC SARS-CoV-2 Primer Mixes or NEBNext VarSkip Short v2 SARS-CoV-2 Primer Mixes?
  6. Can the NEBNext VarSkip Short v2 SARS-CoV-2 Primers cover non-variant SARS-CoV-2 samples?
  7. Which SARS-CoV-2 variants can the NEBNext VarSkip Short v2 SARS-CoV-2 Primers cover?
  8. How do I analyze VarSkip Short v2 SARS-CoV-2 sequencing data?
  9. Does my total RNA sample need to be DNA-free prior to starting the ARTIC workflow?
  10. Can coverage be improved for the recent variants?

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specification Change Notifications

Effective 2/15/2022 VarSkip Short v2 SARS-CoV-2 Primer Mixes 1 and 2 replace VarSkip Short SARS-CoV-2 Primer Mixes 1 and 2.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
