Product Class: Kit

NEBNext® Multiplex Small RNA Library Prep Set for Illumina® (Set 1)

For improved performance and sensitivity, the NEBNext Low-bias Small RNA Library Prep Kit (NEB #E3420) is now available.

Note that additional index primers for multiplexing are provided with kit NEB #E7580 and NEB #E7560.

Product Introduction

The unique workflow of the NEBNext® Small RNA library prep kits addresses the challenge of minimization of adaptor-dimers while achieving production of high-yield, diverse multiplex libraries in a simple protocol.

  • Minimized adaptor-dimer contamination
  • High yields
  • Input RNA can be Total RNA
  • Suitable for methylated small RNAs (e.g., piRNAs) as well as unmethylated small RNAs
Bioz Badge Exists : True
Catalog # Size Concentration
E7300S 24 reactions
E7300L 96 reactions

Product Information

Description





The novel NEBNext® Small RNA workflow has been optimized to minimize adaptor-dimers while producing high-yield, high-diversity libraries. The NEBNext® Small RNA Library Prep Set for Illumina® (Set 1) includes adaptors and multiplex primers with 12 indices, to enable multiplexing. Additional index primers for multiplexing are included in kits NEB #E7580 and NEB #E7560.

Each kit component must pass rigorous quality control standards, and each set of reagents is functionally validated together by construction and sequencing of indexed small RNA libraries on the Illumina sequencing platform.

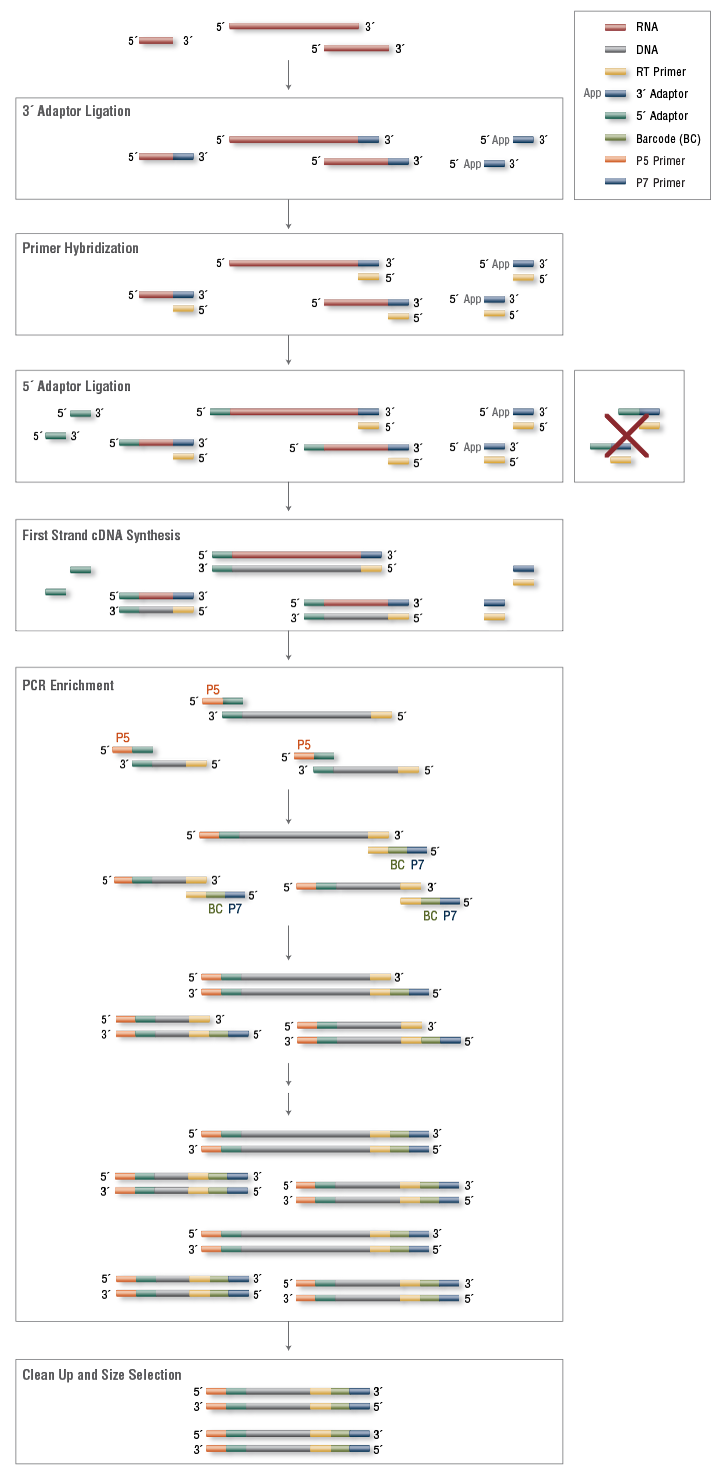

Small RNA Library Preparation Workflow for Illumina

GenomeWeb article reviews NEBNext Small RNA Kits.

Lot Control

The lots provided are managed separately and qualified by additional functional validation. Individual reagents undergo standard enzyme activity and quality control assays, and also meet stringent criteria in the additional quality controls listed on each individual component page
This product is related to the following categories:
Small RNA Library Preparation ,
Next Generation Sequencing Library Preparation,

Kit Components

Kit Components

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    E7300S -20
    Component Name Component # Stored at (°C) Amount Concentration
    NEBNext 3´ Ligation Reaction Buffer E7301AVIAL -20 1 x 0.24 ml Not Applicable
    Murine RNase Inhibitor E7308AVIAL -20 1 x 0.024 ml Not Applicable
    NEBNext 5´ Ligation Reaction Buffer E7304AVIAL -20 1 x 0.024 ml Not Applicable
    NEBNext 5´ Ligation Enzyme Mix E7305AVIAL -20 1 x 0.06 ml Not Applicable
    LongAmp™ Taq 2X Master Mix E7309AVIAL -20 1 x 1.2 ml Not Applicable
    Quick-Load pBR322 DNA-MspI Digest E7323AVIAL -20 1 x 0.24 ml Not Applicable
    DNA Gel Elution Buffer E7324AVIAL -20 1 x 12 ml Not Applicable
    Linear Acrylamide E7325AVIAL -20 1 x 0.048 ml Not Applicable
    Nuclease-free Water E7327AVIAL -20 1 x 5 ml Not Applicable
    TE Buffer E7326AVIAL -20 1 x 0.48 ml Not Applicable
    NEBNext Index 1 Primer for Illumina E7311AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 2 Primer for Illumina E7312AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 3 Primer for Illumina E7313AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 4 Primer for Illumina E7314AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 5 Primer for Illumina E7315AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 6 Primer for Illumina E7316AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 7 Primer for Illumina E7317AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 8 Primer for Illumina E7318AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 9 Primer for Illumina E7319AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 10 Primer for Illumina E7320AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 11 Primer for Illumina E7321AVIAL -20 1 x 0.01 ml 10 µM
    NEBNext Index 12 Primer for Illumina E7322AVIAL -20 1 x 0.01 ml 10 µM
    Gel Loading Dye, Blue E6138AVIAL -20 1 x 0.2 ml 6 X
    NEBNext 3´ SR Adaptor for Illumina E7332AVIAL -20 1 x 0.024 ml Not Applicable
    NEBNext SR RT Primer for Illumina E7333AVIAL -20 1 x 0.024 ml Not Applicable
    NEBNext SR Primer for Illumina E7310AVIAL -20 1 x 0.06 ml Not Applicable
    NEBNext 5´ SR Adaptor for Illumina E7328AVIAL -20 1 x 1,350 pmol Not Applicable
    NEBNext First Strand Synthesis Reaction Buffer E7334AVIAL -20 1 x 0.192 ml Not Applicable
    ProtoScript II Reverse Transcriptase E7355AVIAL -20 1 x 0.024 ml Not Applicable
    NEBNext 3´ Ligation Enzyme Mix E7288AVIAL -20 1 x 0.072 ml Not Applicable
  • NEB # Stored at (°C)
    E7300L -20
    Component Name Component # Stored at (°C) Amount Concentration
    NEBNext 3´ Ligation Reaction Buffer E7301AAVIAL -20 1 x 0.96 ml Not Applicable
    Murine RNase Inhibitor E7308AAVIAL -20 1 x 0.096 ml Not Applicable
    NEBNext 5´ Ligation Reaction Buffer E7304AAVIAL -20 1 x 0.096 ml Not Applicable
    NEBNext 5´ Ligation Enzyme Mix E7305AAVIAL -20 1 x 0.24 ml Not Applicable
    LongAmp™ Taq 2X Master Mix E7309AAVIAL -20 4 x 1.2 ml Not Applicable
    Quick-Load pBR322 DNA-MspI Digest E7323AAVIAL -20 1 x 0.96 ml Not Applicable
    DNA Gel Elution Buffer E7324AAVIAL -20 1 x 48 ml Not Applicable
    Linear Acrylamide E7325AAVIAL -20 1 x 0.192 ml Not Applicable
    Nuclease-free Water E7327AAVIAL -20 1 x 20 ml Not Applicable
    TE Buffer E7326AAVIAL -20 1 x 1.92 ml Not Applicable
    NEBNext Index 1 Primer for Illumina E7311AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 2 Primer for Illumina E7312AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 3 Primer for Illumina E7313AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 4 Primer for Illumina E7314AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 5 Primer for Illumina E7315AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 6 Primer for Illumina E7316AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 7 Primer for Illumina E7317AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 8 Primer for Illumina E7318AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 9 Primer for Illumina E7319AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 10 Primer for Illumina E7320AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 11 Primer for Illumina E7321AAVIAL -20 1 x 0.04 ml 10 µM
    NEBNext Index 12 Primer for Illumina E7322AAVIAL -20 1 x 0.04 ml 10 µM
    Gel Loading Dye, Blue E6138AAVIAL -20 1 x 1 ml 6 X
    NEBNext 3´ SR Adaptor for Illumina E7332AAVIAL -20 1 x 0.096 ml Not Applicable
    NEBNext SR RT Primer for Illumina E7333AAVIAL -20 1 x 0.096 ml Not Applicable
    NEBNext SR Primer for Illumina E7310AAVIAL -20 1 x 0.24 ml Not Applicable
    NEBNext 5´ SR Adaptor for Illumina E7328AVIAL -20 1 x 1,350 pmol Not Applicable
    NEBNext First Strand Synthesis Reaction Buffer E7334AAVIAL -20 1 x 0.768 ml Not Applicable
    ProtoScript II Reverse Transcriptase E7355AAVIAL -20 1 x 0.096 ml Not Applicable
    NEBNext 3´ Ligation Enzyme Mix E7288AAVIAL -20 1 x 0.288 ml Not Applicable

Properties & Usage

Materials Required but not Supplied

3 M Sodium Acetate, pH 5.5
100% Ethanol
80% Ethanol
Corning®, Costar®, Spin-X® Centrifuge Tube Filters (Cellulose Acetate Filters) (Sigma Aldrich # CLS8162)

Magnetic rack or plate (e.g., NEBNext® Magnetic Separation Rack (NEB #S1515S), Alpaqua ® 96S Super Magnet Plate (#A001322), or equivalent)

Size Selection Materials
for gel size selection:
6% Novex® TBE PAGE gel, 1.0 mM
10-well (Life Technologies, Inc. #EC6265BOX)
SYBR® Gold Nucleic Acid Gel Stain (Life Technologies, Inc. #S-11494)
RNase-free Disposable Pellet Pestles® (Kimble Kontes Asset Management, Inc. #749521-1590)
Dry Ice/Methanol Bath or –80°C freezer

for bead selection:
Agencourt® AMPure® XP Beads (Beckman Coulter, Inc. #A63881)

for Pippin Prep™ selection:
3% Agarose Dye Free Gel (Sage Science #CDP 3010)

Monarch® Spin PCR & DNA Cleanup Kit (5 μg) (NEB# T1130)
Bioanalyzer® (Agilent® Technologies, Inc.)

Product Notes

  1. Kit Optimization

    The components of this kit were collectively optimized with FirstChoice®Human Brain Reference RNA (Life Technologies, Inc. #AM7962).

    High quality total RNA should be used as starting material. An RNA IntegrityNumber (RIN) > 7 is recommended.

    Assess the quality and quantity of your sample using the Agilent 2100Bioanalyzer using an Agilent RNA 6000 Nano Chip.

FAQs & Troubleshooting

FAQs

  1. Is it possible to prevent abundant, unwanted RNAs to be included in the Small RNA library?
  2. Can I use Total RNA to make small RNA libraries or do I have to isolate or enrich the sample for small RNA?
  3. Why does the RT primer hybridization occur before 5’adaptor ligation?
  4. Do I have to hybridize the RT primer again after 5’ ligation?
  5. How are the barcodes introduced in the Multiplex libraries?
  6. During size selection on 6% PAGE gel, which bands should I cut out of the gel?
  7. Are libraries prepared with the NEBNext® Small RNA Library prep kit for Illumina compatible with paired-end flow cells for cluster generation?
  8. Can I use the small RNA sample preparation kit for Directional-RNA sequencing?
  9. What is the sequence of the final PCR product?
  10. Can I use enriched small RNA instead of total RNA for the NEBNext Small RNA Library Prep for Illumina?
  11. What should I do if my Small RNA may not have 5´ Phosphate and 3´ OH groups?
  12. How should my NEBNext Small RNA library be trimmed?
  13. Are the Monarch Spin RNA Cleanup Kits compatible with NEBNext reagents for RNA library prep?
  14. What should I do if the sample sheet from the NEB.com website is not compatible with the software version I am using?
  15. Do you have Sample Sheets for use with the NEBNext Multiplex Small RNA Library Prep for Illumina?
  16. Are NEBNext adaptor and primers for Illumina compatible with NEBNext reagents for Illumina library preparation?
  17. Do I have to use custom sequencing primers for my libraries generated with NEBNext® Small RNA Library prep kit for Illumina?
