Gel Loading Dye, Purple (6X), no SDS

Product Introduction

Gel Loading Dye, Purple (6X) is the premier gel loading dye from NEB for sharp, tight bands.

  • No UV shadow
  • Contains Ficoll® for brighter, tighter bands
  • Contains EDTA to stop enzymatic reactions
  • Compatible with agarose and non-denaturing polyacrylamide gels

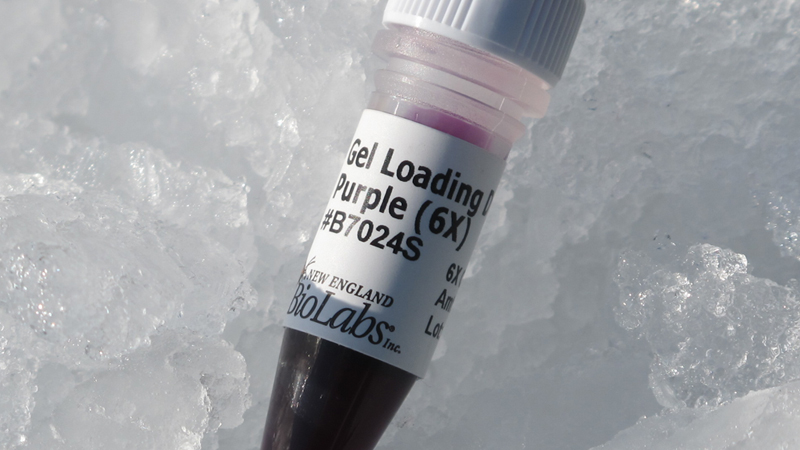

  • Our Purple Gel Loading Dye sharpens bands and eliminates the UV shadow seen with other dyes. Available with SDS (NEB #B7024S) or without SDS
Comparison of dye fronts for Gel Loading Dye, Purple (6X) and Gel Loading Dye, Blue (6X)
Bioz Badge Exists : True
Catalog # Size Concentration
B7025S 4 ml 6 X

Product Information

Description

Gel Loading Dye, Purple (6X), no SDS is a pre-mixed loading buffer which contains a combination of two dyes, Dye 1 (pink/red) and Dye 2 (blue). The red dye serves as the tracking dye for both agarose and non-denaturing polyacrylamide gel electrophoresis. The two dyes separate upon gel electrophoresis; the red band is the major indicator and migrates similarly to Bromophenol Blue on agarose gels. Specifically chosen, this dye does not leave a shadow under UV light. EDTA is also included to chelate magnesium (up to 10 mM) in enzymatic reactions, thereby stopping the reaction. The dye also contains Ficoll®, which creates brighter and tighter bands when compared to glycerol loading dyes. This product is packaged as 4x1 ml vials.

Figure 1: Comparison of dye fronts
Comparison of dye fronts for Gel Loading Dye, Purple (6X) and Gel Loading Dye, Blue (6X)
Nucleic acid samples were run on an agarose gel, with either Purple or Blue loading dyes. Both dyes ran at the same speed.

Figure 2: UV shadow comparison
Gel Loading Dye, Purple (6X) does not cast a UV shadow, as compared to Gel Loading Dye, Blue (6X)
The new Gel Loading Dye, Purple (6X), no SDS, (Lane 1) included in the Quick-Load Purple 1kb DNA Ladder does not cast a UV shadow over the underlying bands, unlike the Gel Loading Dye, Blue (6X) (Lane 2).
This product is related to the following categories:
Quick-Load Purple DNA Ladders,
Gel Loading Buffers,
Buffers,

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

1X Buffer Components

2.5% Ficoll®-400
10 mM EDTA
3.3 mM Tris-HCl
0.02% Dye 1
0.001% Dye 2
pH 8@25°C

Features

  • No UV shadow allows for publication grade images
  • Brighter, sharper bands vs. glycerol-based loading dyes
  • Stops enzyme reactions

Product Notes

  1. Storage Conditions: Store at room temperature.
  2. Use 5 μl of Gel Loading Dye, Purple (6X), noSDS per 25 μl reaction, or 10 μl per 50 μl reaction. Mix well before loading gel.

FAQs & Troubleshooting

FAQs

  1. Does the Gel Loading Dye, Purple have any advantages over the traditional Blue Loading Dye?
  2. How many bands of color should I see on the gel?
  3. I cannot see the blue dye when I run it on a gel. Why not?
  4. How are the 6x loading dyes packaged?
  5. Is Gel Loading Dye, Purple (6X) or Gel Loading Dye, Purple (6X), no SDS compatible with other DNA binding dyes such as SYBR® and GelRed™ during gel electrophoresis?
