Product Class: Restriction Endonuclease

AgeI
neb31 cloned at NEB recombinant dil_C 37 65 Heat CpG

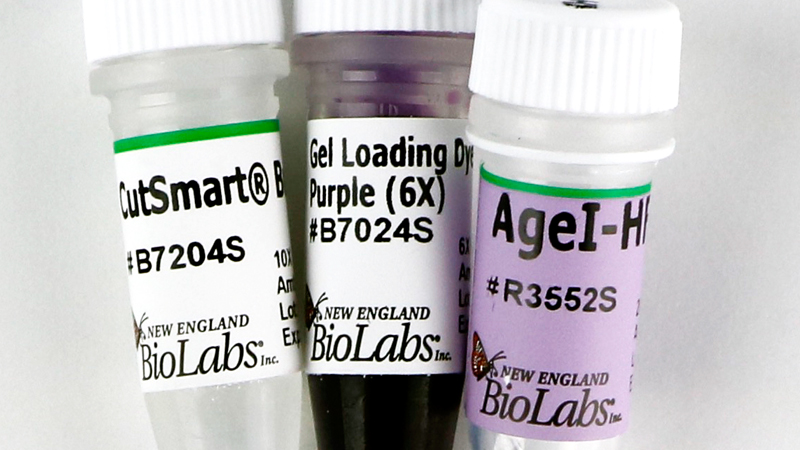

This product has been replaced with the high fidelity version, AgeI-HF™ (NEB #R3552).

  • Catalog # R0552 was discontinued on December 15, 2021
NEB restriction endonuclease that recognizes the sequence A^CCGG_T
Isoschizomers | Single Letter Code

Product Introduction

Bioz Badge Exists : True
Catalog # Size Concentration

Featured Videos

View Video Library
  • ReduceStarActivity_video_thumb

    Reduce Star Activity with High-Fidelity Restriction Enzymes

  • StandardREProtocol_video_thumb

    Standard Protocol for Restriction Enzyme Digests

  • NEBTVEp15VLthumb280x210

    NEB® TV Ep. 15 – Applications of Restriction Enzymes

  • cuttingclose_video_thumb

    Restriction Enzyme Digest Protocol: Cutting Close to DNA End

  • dnasmear_video_thumb

    Restriction Enzyme Digestion Problem: DNA Smear on Agarose Gel

  • EnzymeNotCutting_video_thumb

    Why is My Restriction Enzyme Not Cutting DNA?

  • TooManyBands_video_thumb

    Restriction Enzyme Digest Problem: Too Many DNA Bands

  • nebcloner_dd_demo_thumb

    Double Digestion with NEBcloner

Product Information

Description

AgeI has a High Fidelity version AgeI-HF® (NEB #R3552).

High Fidelity (HF) Restriction Enzymes have 100% activity in rCutSmart Buffer; single-buffer simplicity means more straightforward and streamlined sample processing. HF enzymes also exhibit dramatically reduced star activity. HF enzymes are all Time-Saver qualified and can therefore cut substrate DNA in 5-15 minutes with the flexibility to digest overnight without degradation to DNA. Engineered with performance in mind, HF restriction enzymes are fully active under a broader range of conditions, minimizing off-target products, while offering flexibility in experimental design.

Product Source

An E. coli strain that carries the AgeI gene from Ruegeria gelatinovora (ATCC 25655).
This product is related to the following categories:

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Unit Definition

One unit is defined as the amount of enzyme required to digest 1 µg of λ DNA in 1 hour at 37°C in a total reaction of 50 µl.

Reaction Conditions

1X NEBuffer™ r1.1
Incubate at 37°C

1X NEBuffer™ r1.1
10 mM Bis-Tris-Propane-HCl
10 mM MgCl2
100 µg/ml Recombinant Albumin
(pH 7 @ 25°C)

Activity in NEBuffers

NEBuffer™ r1.1: 100%
NEBuffer™ r2.1: 75%
NEBuffer™ r3.1: 25%
rCutSmart™ Buffer: 75%

Diluent Compatibility

Storage Buffer

10 mM Tris-HCl
250 mM NaCl
1 mM DTT
0.1 mM EDTA
200 µg/ml BSA
50% Glycerol
0.15% Triton® X-100
pH 7.4 @ 25°C

Heat Inactivation

65°C for 20 minutes

Methylation Sensitivity

dam methylation: Not Sensitive
dcm methylation: Not Sensitive
CpG Methylation: Blocked

Isoschizomers

AgeI-HF
AsiGI
BshTI
CspAI
PinAI

Product Notes

  1. Blocked by CpG methylation.

Protocols, Manuals & Usage

Protocols

  1. Optimizing Restriction Endonuclease Reactions
  2. Restriction Digest Protocol
  3. Double Digest Protocol with Standard Restriction Enzymes

Usage & Guidelines

Tools & Resources

Selection Charts

Web Tools

FAQs & Troubleshooting

FAQs

  1. What factors inhibit AgeI?
  2. Are extended digests of AgeI recommended?
  3. What is the reaction temperature of AgeI?
  4. Which NEB restriction enzymes are supplied with Gel Loading Dye, Purple (6X)?
  5. Is this enzyme sensitive to dam, dcm or mammalian CpG methylation?
  6. Can you tell me more about the switch from BSA to Recombinant Albumin (rAlbumin) in NEBuffers?
  7. Can Gel Loading Dye, Purple 6X (B7024) be stored in cold temperatures?

Troubleshooting

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.

New England Biolabs (NEB) is committed to practicing ethical science – we believe it is our job as researchers to ask the important questions that when answered will help preserve our quality of life and the world that we live in. However, this research should always be done in safe and ethical manner. Learn more.
