Trypsin-digested BSA MS Standard (CAM-modified)

Product Introduction

This standard is a complex mixture of peptides produced by the tryptic digest of reduced and alkylated Bovine Serum Albumin (BSA).

  • Used to standardize MALDI-TOF or ESI mass spectrometers (TOF, Q-TOF, Ion Trap, or Orbitrap)
  • Standardization range of 500-2400 Da
  • Free of salts, glycerol and detergents
  • Supplied in dry format
  • Optimal stability for up to 24 months
Bioz Badge Exists : True
Catalog # Size Concentration
P8108S 500 pmol

Product Information

Description

A complex mixture of peptides produced by Trypsin digestion of Bovine Serum Albumin (BSA) that was reduced and alkylated with Iodoacetamide (CAM modified). This peptide mixture can be used to test a Matrix-Assisted Laser Desorption/Ionization Time-Of-Flight (MALDI-TOF) or Electrospray Ionization (ESI) mass spectrometer (TOF, Q-TOF or Ion Trap).

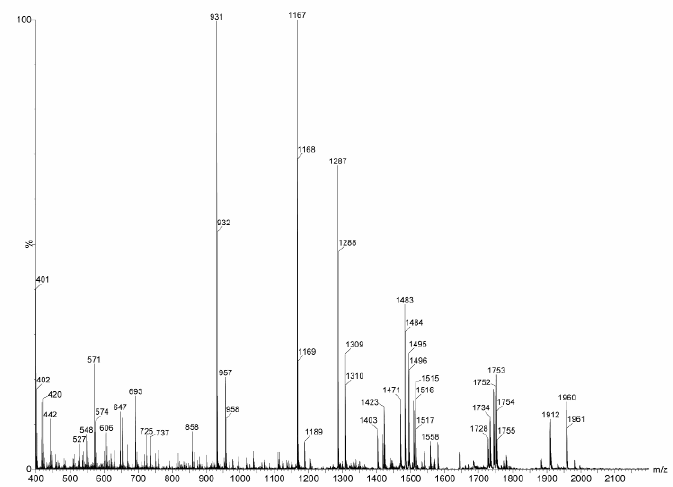

MALDI Analysis of BSA Digest:
MALDI Analysis of BSA Digest:
The BSA digest is dissolved to 1 pmol/μl. One µl of digest is mixed with 1 µl of α-cyano-4-hydroxycinnamic acid (10 mg/ml in 50:50 acetonitrile:water with 0.1% trifluoroacetic acid). One μl of the digest/matrix solution were then spotted directly onto a MALDI target plate.

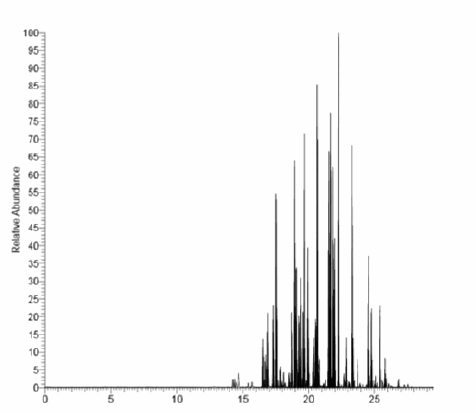

Online Analysis of BSA Digest:
Online Analysis of BSA Digest:
The BSA digest solution was diluted to 100 fmol/μl with 0.1% formic acid. One μl (100 fmol) of the digest solution was injected via an Easy-nanoLC II (Proxeon) onto a self-packed reverse phase C18 nano column (Phenomenex packing material, 5 cm, 150 μm) and loaded onto a self-packed C18 analytical column with an integrated tip (New Objective Picofrit, 15 cm, 100 μm, Phenomenex packing material). Peptides were separated using a 45 min 5-70%B gradient (A = 0.1% formic acid, B = CH3CN, 0.1% formic acid) at a flow rate of 400 nl/min. Eluting peptides were analyzed online by a Q-Exactive mass spectrometer (Thermo Scientific) with an electrospray ion source. MS/MS spectra were acquired by HCD using an acquisition range of 400 to 1600 m/z.

Product Source

BSA (GENBANK P02769) was digested using Trypsin-ultra, Mass Spectrometry Grade.

Reconstitution

Suggested volume to resuspend: 500 µl. Avoid repeated freeze/thaw cycles once in solution.
This product is related to the following categories:
Proteome Analysis
This product can be used in the following applications:
Proteomics

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    P8108S -20
    Component Name Component # Stored at (°C) Amount Concentration
    Trypsin-digested BSA MS Standard (CAM-modified) P8108SVIAL -20 1 x 500 pmol Not Applicable

Properties & Usage

Product Notes

  1. Supplied in dry format.
  2. This product has lot-to-lot variations in peptide frequency and abundance.

Quality, Safety & Legal

Quality Assurance Statement

Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.

Specifications

The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]

Certificate Of Analysis

The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]

Safety DataSheets

The following is a list of Safety Data Sheet (SDS) that apply to this product to help you use it safely.

Legal and Disclaimers

Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.

This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
