T7 Endonuclease I
NEB2 Gray property icon for cloned at NEB recombinant Gray property icon for incubation temperature 37° Gray property icon for heat inactivation no

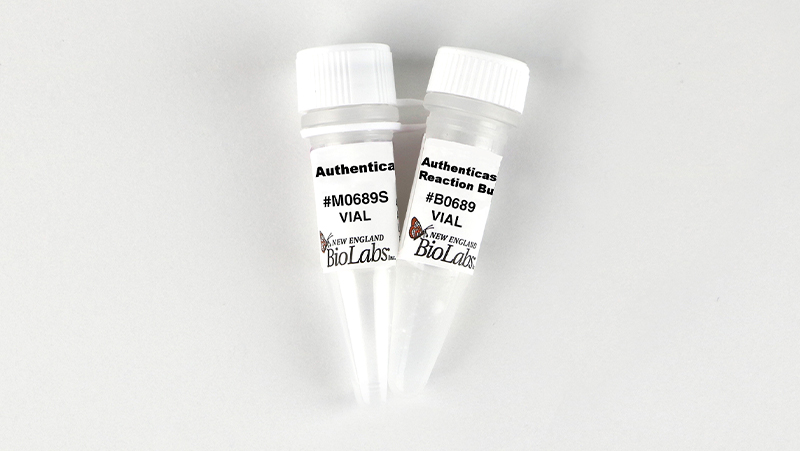

Authenticase® (NEB #M0689) now available for improved genome editing mutation detection.

Product Introduction

Mechanism of T7 Endonuclease I

  • DNA Endonuclease
  • Catalyzes the cleavage of DNA mismatches and non-β DNA structures including Holliday junctions and cruciform leaving 3'-OH and 5'-phosphate
  • Best at C mismatches and does not recognize all DNA mismatches
  • To a lesser extent cleaves across a nick in dsDNA
  • Key enzyme for use in genome editing mutation detection workflows

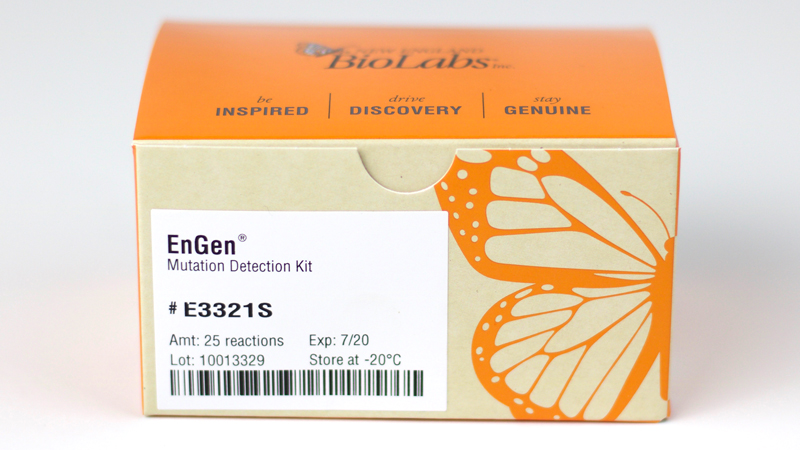

  • Also available in convenient kit format: EnGen Mutation Detection Kit (NEB #E3321)
  • Need help finding the right exonuclease for your experiments? Try Exo Selector
Bioz Badge Exists : True
Catalog # Size Concentration
M0302S 250 units 10000 units/ml
M0302L 1250 units 10000 units/ml

Product Information

Description

Highlights

  • Isolated from a recombinant source
  • Supplied with 10X Reaction Buffer
  • Recognizes non-perfectly matched DNA
T7 Endonuclease I recognizes and cleaves non-perfectly matched DNA, cruciform DNA structures, Holliday structures or junctions, heteroduplex DNA and more slowly, nicked double-stranded DNA. The cleavage site is at the first, second or third phosphodiester bond that is 5´ to the mismatch. The protein is the product of T7 gene 3.

Product Source

An E. coli strain that carries a fusion of maltose binding protein and T7 Endonuclease I (T7 Endo I).
This product is related to the following categories:
Validation of CRISPR-based Gene Editing,
Exonucleases and Non-specific Endonucleases,
DNA Repair Enzymes and Structure-specific Endonucleases,
This product can be used in the following applications:
Whole Genome Amplification & Multiple Displacement Amplification

Reagents Supplied

Reagents Supplied

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration

Properties & Usage

Materials Required but not Supplied

Unit Definition

One unit is defined as the amount of enzyme required to convert > 90% of 1 μg of supercoiled cruciform pUC(AT) to > 90% linear form in a total reaction volume of 50 μl in 1 hour at 37°C.

Reaction Conditions

1X NEBuffer™ 2
Incubate at 37°C

1X NEBuffer™ 2
50 mM NaCl
10 mM Tris-HCl
10 mM MgCl2
1 mM DTT
(pH 7.9 @ 25°C)

Storage Buffer

20 mM Tris-HCl
200 mM NaCl
1 mM DTT
0.1 mM EDTA
50% Glycerol
0.15% Triton® X-100
pH 7.5 @ 25°C

Heat Inactivation

No

Application Features

  • Resolve four-way junction or branched DNA
  • Detect or cleave heteroduplex and nicked DNA
  • Randomly cleave linear DNA for shot-gun cloning

Product Notes

  1. T7 Endonuclease I is a structure-selective enzyme. It acts on a variety of DNA substrates with different specific activities.
  2. It is important to control the amount of enzyme and the reaction time used for cleavage of a particular substrate.
  3. Temperatures above 42°C cause an increase in nonspecific nuclease activity and should be avoided.
  4. pUC(AT) is derived from pUC19 with a modification of the polylinker between the EcoRI site and the PstI site.

References

  1. Xu, M. -Q. and Evans, T.C. (2001). Methods. 24, 257-277.
  2. Parkinson, M.J. and Lilley. D.M.J. (1997). J. Mol. Biol.. 270, 169-178.
  3. White, M.F. et al. (1997). J. Mol. Biol.. 269, 647-664.
  4. Hadden, J.M. et al. (2001). Nat. Struct. Biol.. 8, 62-67.

Tools & Resources

Selection Charts

Web Tools

FAQs & Troubleshooting

FAQs

  1. Is there a way to inactivate T7 Endonuclease I?
  2. Does T7 Endonuclease I recognize single base pair mismatches?
  3. What common additives inhibit T7 Endonuclease I?
  4. What is the molecular weight of T7 Endonuclease I?
  5. What PCR reagents do you recommend for DNA amplification in genome editing (CRIPSR/Cas9,TALEN,ZFN) mismatch detection assays?
  6. Can I use T7 Endonuclease I genome editing (CRIPSR/Cas9,TALEN,ZFN) mismatch detection assays using unpurified PCR products?
  7. Can I use T7 Endonuclease I for genome editing applications?
  8. What is the molecular weight of T7 Endonuclease I?
  9. What PCR reagents do you recommend for DNA amplification in genome editing (CRIPSR/Cas9,TALEN,ZFN) mismatch detection assays?
