Product Class: Kit

5´ DNA Adenylation Kit

Product Introduction

  • This kit contains Mth RNA Ligase (NEB #M2611A)
  • Ideal for generating high yields of 5´ adenylated DNA
  • Easy to use protocol with >95% efficiency
  • One step reaction with no need for gel purification
Bioz Badge Exists : True
Catalog # Size Concentration
E2610S 10 reactions 50 µM
E2610L 50 reactions 50 µM

Featured Videos

View Video Library
  • RNase_Contamination_Anim_720x405

    Avoiding RNase Contamination

Product Information

Description

The 5´ DNA adenylation Kit is a simple and efficient enzymatic method for generating 5´-adenylated DNA. The kit is optimized to produce the adenylated DNA with or without 3´-terminator. The 5´ DNA adenylation kit routinely generates greater than 95% conversion of pDNA to AppDNA(1). This highly efficient process eliminates the need for gel isolation of the product and increases overall yield.
This product is related to the following categories:
RNA Ligation,

Kit Components

Kit Components

The following reagents are supplied with this product:

NEB # Component Name Component # Stored at (°C) Amount Concentration
  • NEB # Stored at (°C)
    E2610S -20
    Component Name Component # Stored at (°C) Amount Concentration
    Mth RNA Ligase M2611AVIAL -20 1 x 0.02 ml 50 µM
    5' DNA Adenylation Reaction Buffer B2610SVIAL -20 1 x 1 ml 10 X

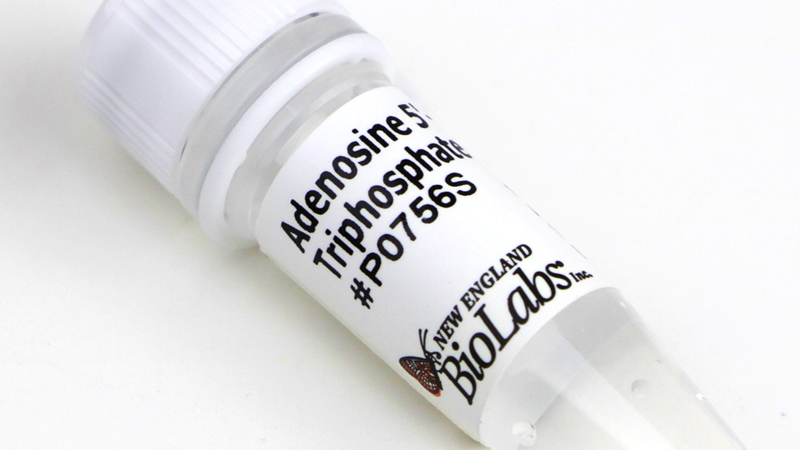

    Adenosine 5' Triphosphate N0757AVIAL -20 1 x 0.1 ml 1 mM
  • NEB # Stored at (°C)
    E2610L -20
    Component Name Component # Stored at (°C) Amount Concentration
    Mth RNA Ligase M2611AAVIAL -20 1 x 0.1 ml 50 µM
    5' DNA Adenylation Reaction Buffer B2610SVIAL -20 1 x 1 ml 10 X
    Adenosine 5' Triphosphate N0757AVIAL -20 1 x 0.1 ml 1 mM

Properties & Usage

Features

  • One step reaction gives quantitative adenylation
  • Simpler than existing chemical and enzymatic methods
  • Reduces need for extensive purification of reaction product
  • 65°C reaction temperature reduces secondary structural concerns
  • Easily scalable from pmol to μmol range

Application Features

Enzymatic 5´-adenylation of single-stranded DNA linkers for next generation sequencing.

Product Notes

  1. For substrates with unprotected 3´ termini increase concentration of ATP to 0.5 mM to prevent circularization and concatemerization.
  2. The low turnover of the enzyme requires an approximately equimolar concentration of the enzyme and the oligonucleotide substrate.
  3. Adenylated DNA linkers can be used for 3´ end ligation of RNA in cDNA library preparation for Next Generation sequencing protocols [3,4].

References

  1. Zhelkovsky, A.M. and McReynolds, L.A. (2011). Nucl. Acids Res. 39(17): e117.
  2. Torchia, C., Takagi, Y. and Ho, C.K. (2008). Nucleic Acids Res. 36, 6218-6227.
  3. Hafner, M. et al. (2008). Methods. 44, 3-12.
  4. Vigneault, F., Sismour, A.M. and Church, G.M. (2008). Nature Methods. 5, 777-779.

Tools & Resources

Selection Charts

FAQs & Troubleshooting

FAQs

  1. Can this 5' DNA adenylation kit be used for adenylating ssRNA oligos?
  2. What is the molecular weight of Mth RNA Ligase? Is it a fusion protein?
  3. What ratio of enzyme to oligonucleotide do you recommend
  4. Can Mth RNA Ligase be used in other NEBuffers?
  5. Can Mth RNA Ligase be used for ligation?
  6. Does PEG stimulate adenylation?
  7. What concentration of ATP should be used in the adenylation reaction?
  8. Will the enzyme work at low temperature (e.g., 37°C)?
  9. How do I determine the extent of adenylation?
  10. Do I need to clean up the adenylation reaction before I use the oligo for ligation?
  11. What is the composition of the 5´ DNA Adenylation Reaction Buffer at 1X concentration?
  12. What is the salt tolerance of this RNA ligase?
  13. How can I scale up my adenylation reaction?
